Power Generation

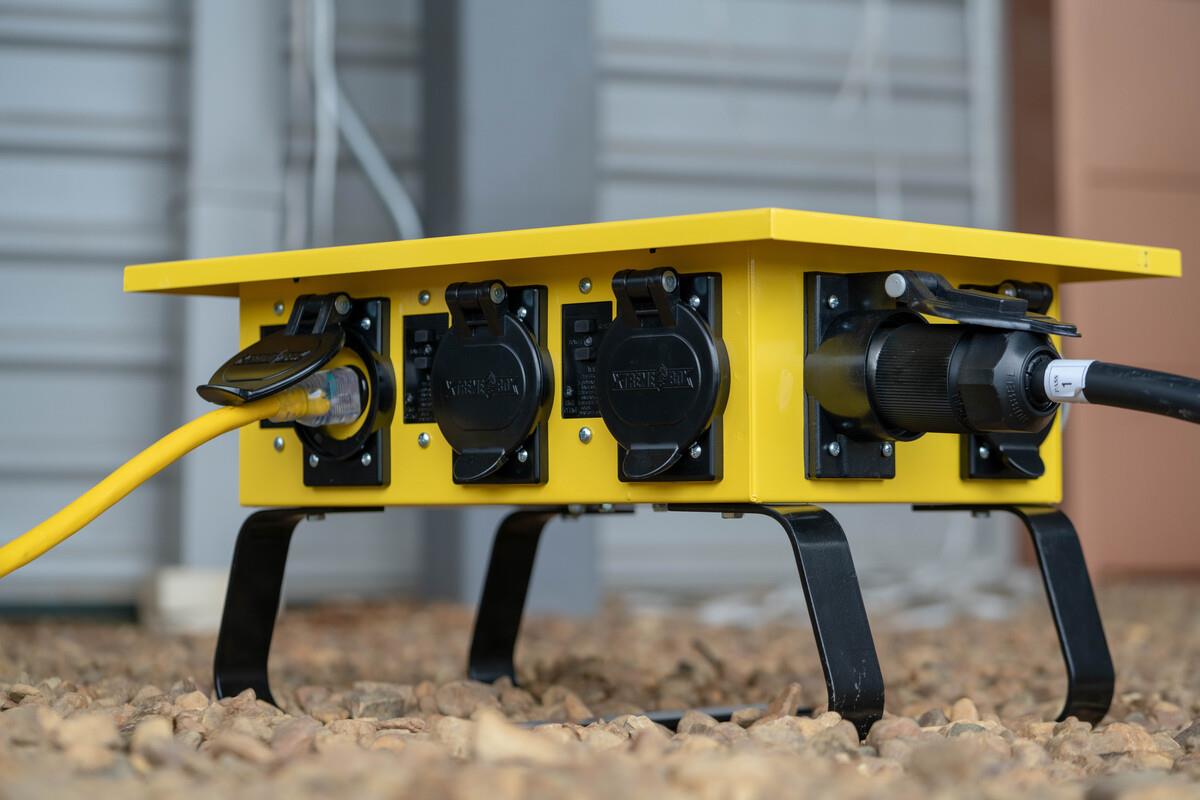

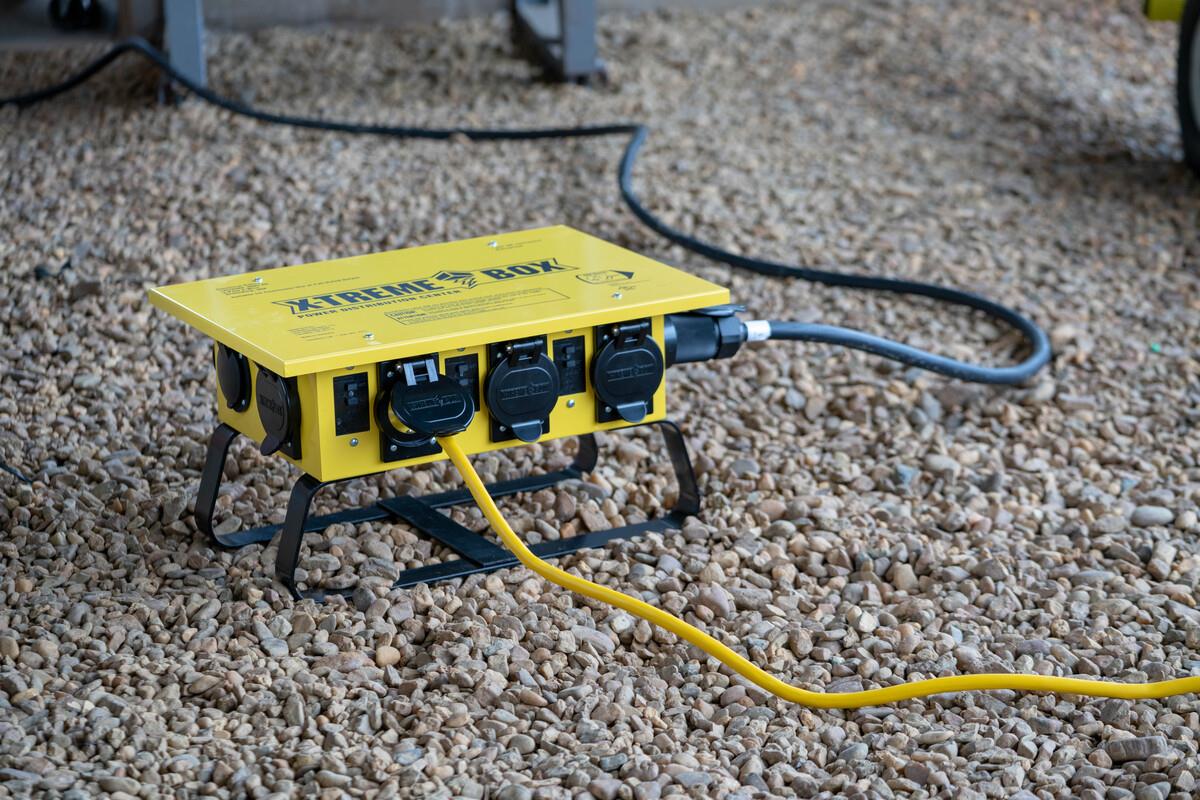

Distribution Box


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Daily: Request Quote

Quantity:

Power inlet: 50A 125/250V California style twist lock flanged inlet with integral cover
Power outlets: (1)50A 125/250V California style twist lock receptacle,
(1)NEMA L6-30R 30A 250V twist lock receptacle,
(6)NEMA 5-20R 20A 125V receptacles
Over current protection: 50A receptacle - none,
30A receptacle - 30A circuit breaker for each ungrounded conductor,
20A receptacles - 20A circuit breaker for each receptacle
Ground fault protection: Individual Class A GFCI for each 20A receptacle
Over-voltage protection: Provided by GFCI on each 20A receptacle
Enclosure type: NEMA Type 3R, rainproof
Enclosure material: Carbon steel, protected by e-coat and yellow exterior paint
Enclosure base: Carbon steel, black powder coat finish
Receptacle covers: Thermoplastic on all receptacles
Weight: 33 lb

Also check the following item(s) related to the above:

* Please call us with any questions about our distribution box in Corona CA, Greater Los Angeles, and Orange County.
